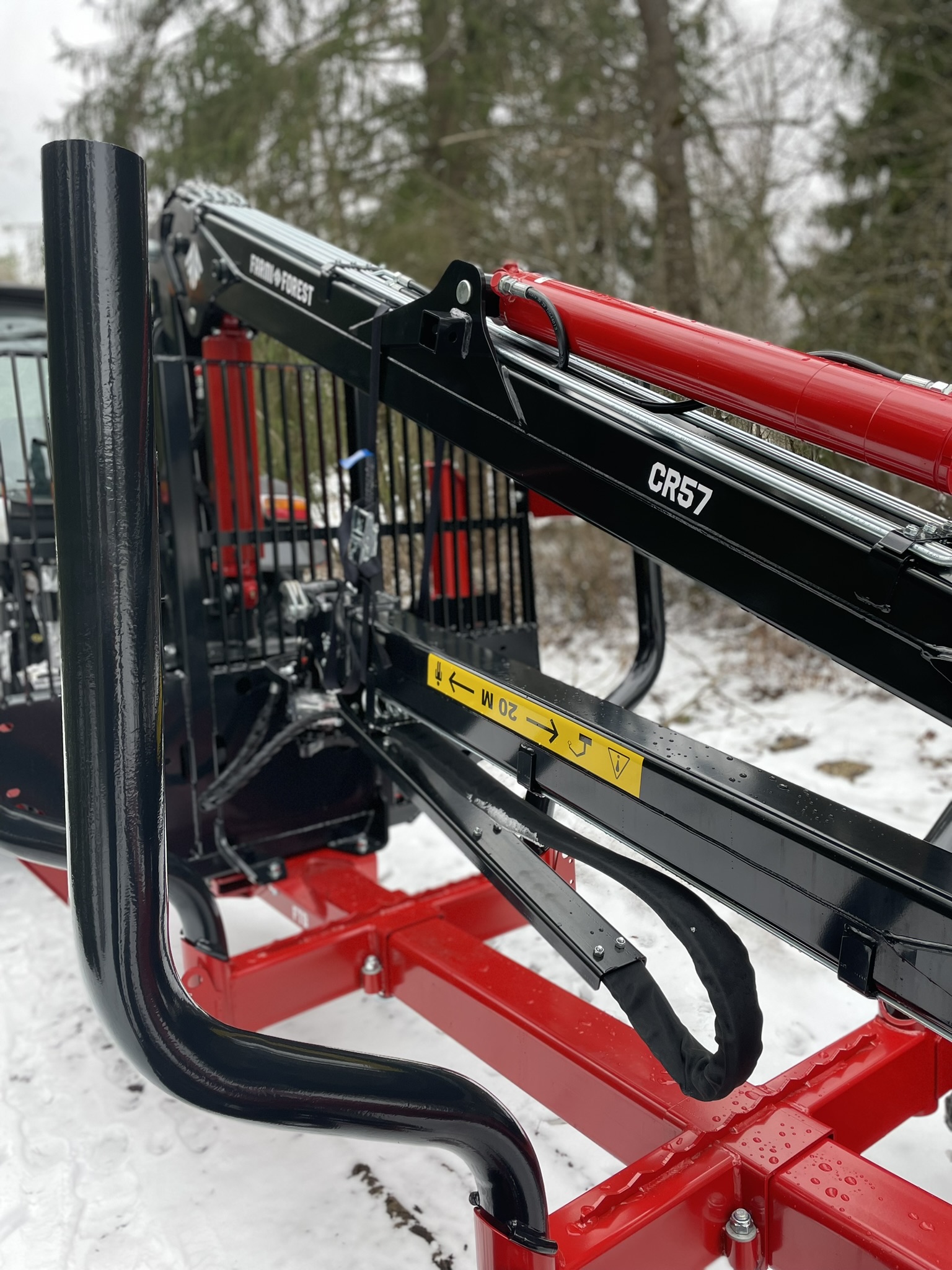

CR57 Forstkran
CR57 Forstkran - Image 2

CR57 Forstkran

Der CR57 ist ein neues Forstkran von Farmi. Der Forstkran hat eine maximale Reichweite von 7,2 m, ein Brutto-Hubmoment von 51 kNm und eine Drehkraft von 12 kNm. Der CR57-Forstkran hat eine Hubkraft von 1060 kg bei 4 m und 500 kg bei 7,2 m maximaler Reichweite.

4o
Tootekood: - Kategooria:
Grapple

(C0) Without grapple, (C16) Grapple for logs 0,16 m2 (FL), (C18) Grapple for logs 0,18 m2 (FL), (C23) Grapple for logs 0,23 m2 (FL), (C36) Grapple for energy wood 0,21 m2 (FL), (C38) Grapple for energy wood 0,25 m2 (FL), (EBG01) Wide Grapple for energy wood 0,15 m3, (GB3) Gravel bucket for C23 grapple 0,24 m3 (FL)
Supply of Hydraulics

Constant Flow hydraulic, Load Sensing hydraulic
Control Unit

(A11) 2/8 Pre-hydraulic, +2x el. propo, Parker P70, 215bar, (A12) 2/8 Pre-hydraulic, +2x el.propo, Walvoil DPX100, (max 120 L/min) 215bar, (A3.1) 6/8 XY valve, BLB BM50 (50 L/min) 190bar, (A4) 4/8 XY+2x el.on-off valve, Hydro-Control D3M, 190 bar, (A7) 4/8 XYZ control valve, Hydro Control, 190bar, (215bar by request), (AH21) Electrical proportional, Parker L90LS, Parker MC43 controller, 215 bar with IQAN LC6 Joysticks, (LS compatible, speeds and ramps not adjustable by customer, (AH21BD) Electrical proportional, Parker L90LS, Parker MC43 controller, 215bar with Parker IQAN LC6 Joysticks with CAN modules, Parker G11 bluetooth gongle, 2x cable set, (AH21D) Electrical proportional, Parker L90LS, Parker MC43 controller, 215bar with Parker IQAN LC& Joysticks, Parker MD3 display, 3x cable set, (AH21RCI) Radio control IMET, electrical proportional, Parker L90LS valve block, 215bar
Crane Base

(B0) Without Support legs, (BF1) Support legs CR47-CR69+Flap down type, (BF3) Support legs CR89 flap down type
Accessories

(W0) Main boom redy for winch, No accessories
High pressure oil filter

(HPF) High pressure oil filter, No oil filter
Valve block cover bag

(VBC) Valve block cover, No valve block cover
