| Grapple | (C0) Without grapple, (C23) Grapple for logs 0,23 m2 (FL), (C25.1) Grapple for logs 0,26 m2 (FL), (C25) Grapple 0,25 Grippen, (C28) Grapple for logs 0,28 m2 (FL), (C36) Grapple for energy wood 0,21 m2 (FL), (C38) Grapple for energy wood 0,25 m2 (FL), (EBG01) Wide Grapple for energy wood 0,15 m3, (GB3) Gravel bucket for C23 grapple 0,24 m3 (FL) |
|---|---|
| Supply of Hydraulics | Constant Flow hydraulic, Load Sensing hydraulic |
| Control Unit | (A0) Without control valve, (A11) 2/8 Pre-hydraulic, +2x el. propo, Parker P70, 215bar, (A12) 2/8 Pre-hydraulic, +2x el.propo, Walvoil DPX100, (max 120 L/min) 215bar, (AH21) Electrical proportional, Parker L90LS, Parker MC43 controller, 215 bar with IQAN LC6 Joysticks, (LS compatible, speeds and ramps not adjustable by customer, (AH21BD) Electrical proportional, Parker L90LS, Parker MC43 controller, 215bar with Parker IQAN LC6 Joysticks with CAN modules, Parker G11 bluetooth gongle, 2x cable set, (AH21D) Electrical proportional, Parker L90LS, Parker MC43 controller, 215bar with Parker IQAN LC& Joysticks, Parker MD3 display, 3x cable set, (AH21RCI) Radio control IMET, electrical proportional, Parker L90LS valve block, 215bar |
| Crane Base | (B0) Without Support legs, (BF3) Support legs CR89 flap down type |
| Accessories | (HSB) High seat on a crane boom, (W1) Winch 1400 with radio control (winch valve integrated to A11-A41), (W2) Winch with 1400 radio control (winch valve integrated to A11-A41), No accessories |
| High pressure oil filter | (HPF) High pressure oil filter, No oil filter |
| Valve block cover bag | (VBC) Valve block cover, No valve block cover |
| Work lights with protection | (L1) Worklights yes, No |
| Oil cooling package | (CP1) Oil cooling package with electrical cable to tractor battery, No oil cooling package |
| Electrical floating position | (FP) Electrical floating position for lifting and slewing (for A11-AH26.38), No electrical floating positsion |
| Damping for slewing gear | (D2) Damping for slewing gear and lifting cylinder, No damping for slewing gear and lifting cylinder |
| Joystick holders | (JL) Pair of joystick holder links for A11-AH26.38, No joysticks |
| Counter plate | (PL) Counter plate for the turning device, No counter plate |
| Counter plate for legs | (PL2) Counter plate for the support legs, No counter plate |
Forstkräne
CR89 Forstkran

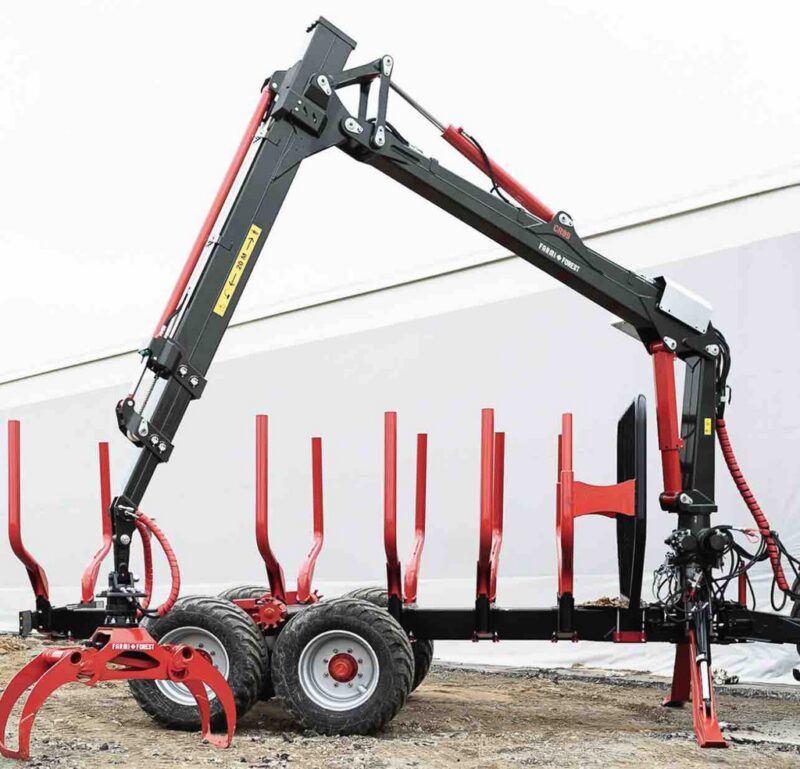

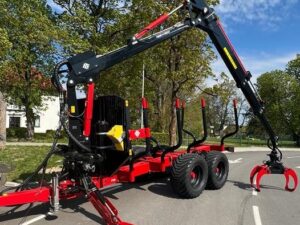

The Farmi CR89 is a powerful crane with two extensions. Crane range is 9 m, gross lifting torque 75 kNm and turning force 19 kNm. It has robust and powerful die cast gear housing. Thanks to the slewing mechanism’s oil drain caps, the crane is easy to maintain. Protection of the lifting cylinder belongs to the crane as standard. CR89 forest crane has a reach of 9 m, a gross lifting torque of 75 kNm and a turning moment of 19 kNm. The lifting force is at 4 m / 1380 kg and at maximum reach 9 m / 515 kg.
