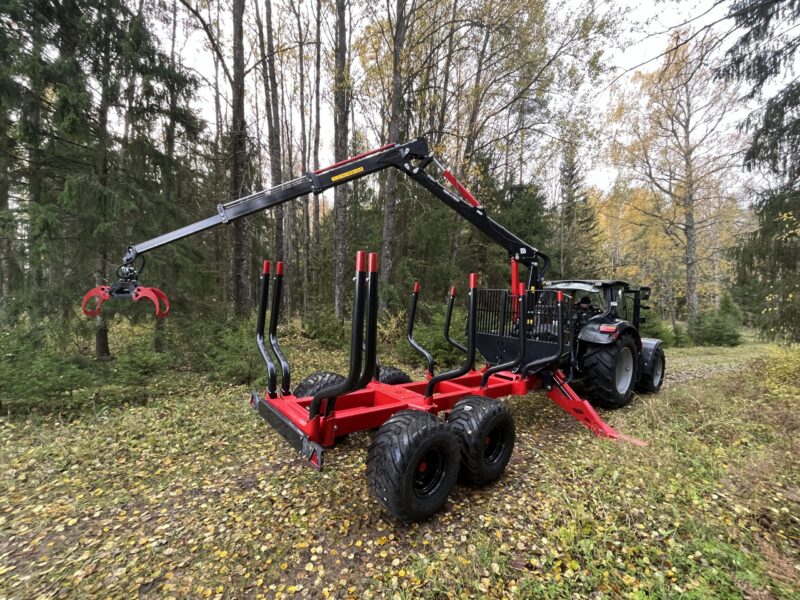

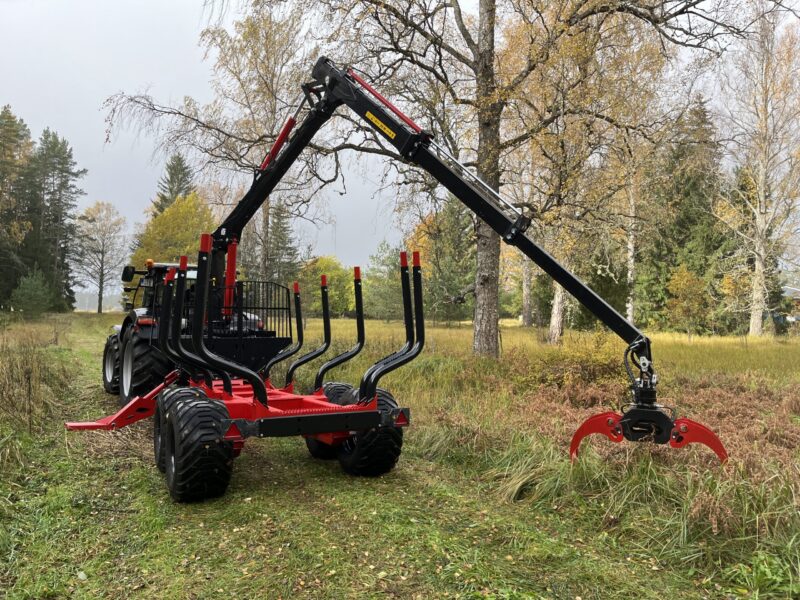

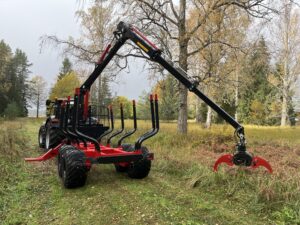

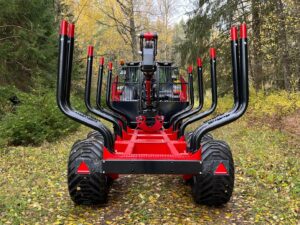

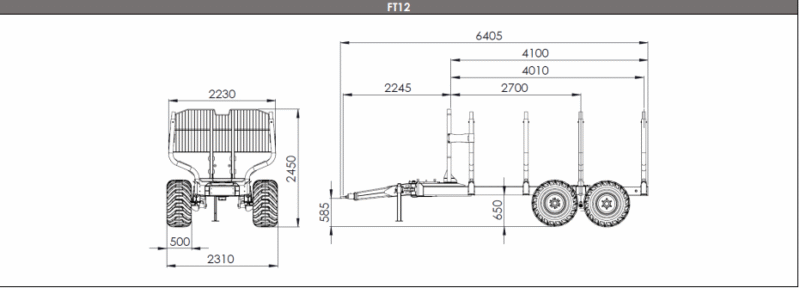

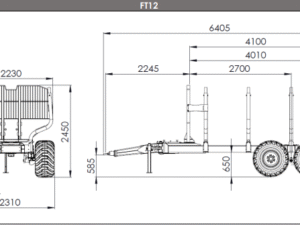

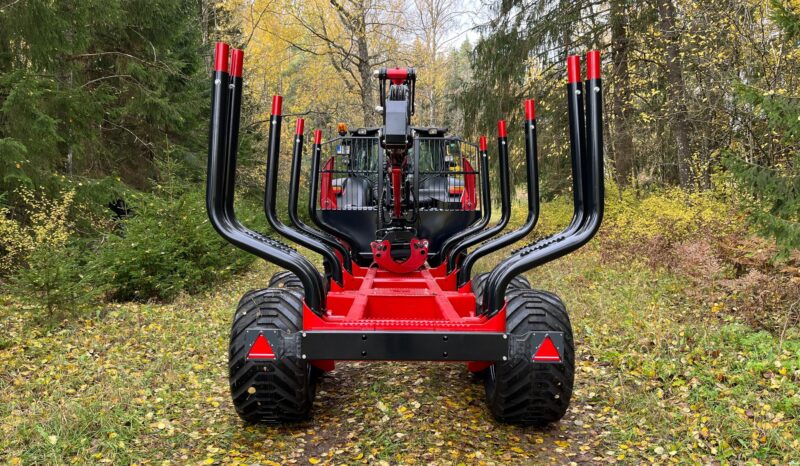

The FT12 forest trailer is an excellent choice for transporting heavy forest loads. This double-beam trailer is designed to be robust and reliable for loads up to 15,000 kg. The trailer’s double-beam construction provides a sturdy and stable platform that can withstand heavy loads on challenging terrain.
| Cargo Module | (A3+BL) Bolsters 3 pairs+bolter lock, (A4+BL) Bolsters 4 pairs+bolster lock, (A4Ex+BL) Frame extension, bolsters 4 pairs+bolster lock, (A5Ex+BL) Trailer with frame extension and 5 pair of bolsters+bolster lock |
|---|---|
| Couplyng | (C2) German high type drawbar without hitch, (C3) Austrian low type drawbar without hitch |
| Bolt | (K1.1) Bolt on HD swiveling eye 50mm (110×100) only if C2 orC3 drawbar have been chosen, (K1) Bolt turning eye 50mm (100×110) only if C2 or C3 drawbar have been chosen, (K2) Bolt on fixed eye 40mm (100×110) only if C2 or C3 drawbar have been chosen, (K3) Bolt on K-80 eye (100×110) only if C2 or C3 drawbar have beel chosen |
| Wheel set | (WH0) without wheels, (WH3.6) 500/50-17 RF-rim, 6 holes, (WH5.6) 400/55-22,5 RF-rim, 6 holes |
| Drive | (RWD) Roller-drive, tractor hydraulic, (RWD+) Roller-drive with elect. control system, Without drive |
| Traffic Requirements | (TK) Road traffic kit (number plate holder frame with LED-s, wheel stoppers), (WB) Wheel stoppers, Off-road use |
| Brakes | (B0) Without brakes, (B1) Hydraulic brakes 2 wheels, (B2) Hydraulic brakes 4 wheels, (B3) Air brakes 2 wheels, (B4) Air brakes 4 wheels |
| Supply of Hydraulics | (P1+T2+) Piston pump on the drawbar, 65L @650rpm, Tank, 95L oil-filled with HVLP oil, (P2+T2+) Piston pump on the drawbar, 82L @650rpm, Tank, 95L oil-filled with HVLP oil, (P4+T2+) Piston pump with multiplier on the drawbar, 98 @650rpm, Tank, 95L oil-filled with HVLP oil, (P4PTO+T2+) Piston pump with female-multiplier to PTO, 98L @650rpm, Tank, 95L oil-filler with HVLP oil, (P6+T2+) Load sensing pumps with multiplier on the drawbar, 120L @650rpm, Tank, 95L oil-filled with HVLP oil, (P6PTO+T2+) Load sensing pump with female-multiplier to PTO, 98L @650rpm, Tank, 95 oil-filled with HVLP oil, Trailer and crane connected to tractor hydraulics |
| Control Unit | (D1) Platform with back support on the drawbar (PSH option must be selected for crane), Without platform |
| LED Lights | (L2) Rear LED lights with Kilpi with flexible arm, reflectors and cover, No Lights |
| Biomass box | (Bbox) yes, No biomass box |
| Parking support legs | (SJ) Removable parking support leg jack on drawbar, (SL) Removable parking support leg on drawbar |
| Oil cooling package | (CP2) Oil cooling package, attached to the tank, only with T2 on T2+, No oil cooling package |
| Parking brake | (PB1) Parking brake, actuators at wheels (only with FT11 trailers), No parking brake |
Related products
-

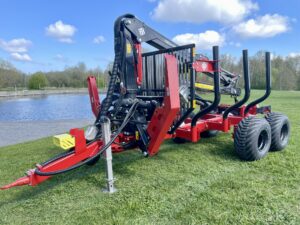

AnhängerFT9 Trailer
View more This product has multiple variants. The options may be chosen on the product page -

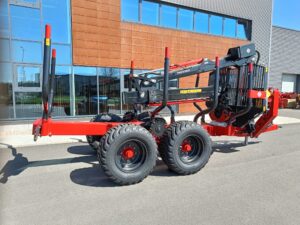

AnhängerFT13 Trailer
View more This product has multiple variants. The options may be chosen on the product page -

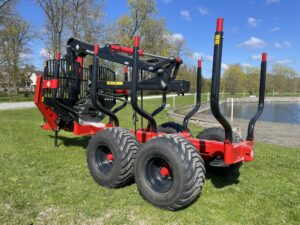

AnhängerFT11 Trailer
View more This product has multiple variants. The options may be chosen on the product page -

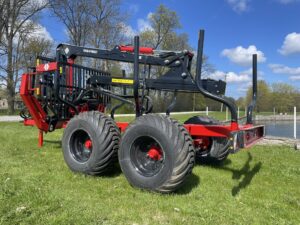

AnhängerFT7 Trailer
