| Cargo Module | (A3+BL) Bolsters 3 pairs+bolter lock, (A4+BL) Bolsters 4 pairs+bolster lock, (A4Ex+BL) Frame extension, bolsters 4 pairs+bolster lock, (A5Ex+BL) Trailer with frame extension and 5 pair of bolsters+bolster lock |
|---|---|
| Couplyng | (C1) Scandinavian low type drawbar welded swiveling hitch, (C2) German high type drawbar without hitch, (C7) High type Rückmatic overrun drawbar |
| Bolt | (K1) Bolt turning eye 50mm (100×110) only if C2 or C3 drawbar have been chosen, (K2) Bolt on fixed eye 40mm (100×110) only if C2 or C3 drawbar have been chosen, (K3) Bolt on K-80 eye (100×110) only if C2 or C3 drawbar have beel chosen, Not applicable (with drawbar C1) |
| Wheel set | (WH0) without wheels, (WH2.6e) Wheels 400/60-15,5 RF-rim, 6 holes, (WH4.6) 480/45-17 RF-rim, 6 holes |
| Traffic Requirements | (TK) Road traffic kit (number plate holder frame with LED-s, wheel stoppers), (WB) Wheel stoppers, Off-road use |
| Brakes | (B0) Without brakes, (B1) Hydraulic brakes 2 wheels, (B2) Hydraulic brakes 4 wheels, (B3) Air brakes 2 wheels, (B4) Air brakes 4 wheels |
| Supply of Hydraulics | (P1+T2+) Piston pump on the drawbar, 65L @650rpm, Tank, 95L oil-filled with HVLP oil, (P2+T2+) Piston pump on the drawbar, 82L @650rpm, Tank, 95L oil-filled with HVLP oil, (P7+T1+) Piston pump on drawbar, at 650p/min-50L/min, tank 40L filled with HVPL32 oil, Trailer and crane connected to tractor hydraulics |
| Control Unit | (D1) Platform with back support on the drawbar (PSH option must be selected for crane), (D2) Platform with back support for trailer overrun front brakes, Without platform |
| LED Lights | (L2) Rear LED lights with Kilpi with flexible arm, reflectors and cover, No Lights |
| Biomass box | (Bbox) yes, No biomass box |
Anhänger
FT9 Trailer
Product Description

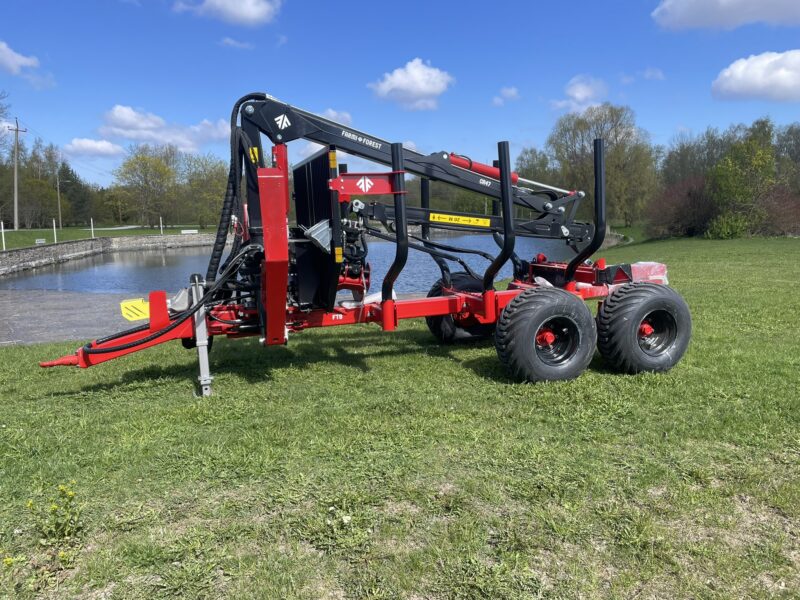

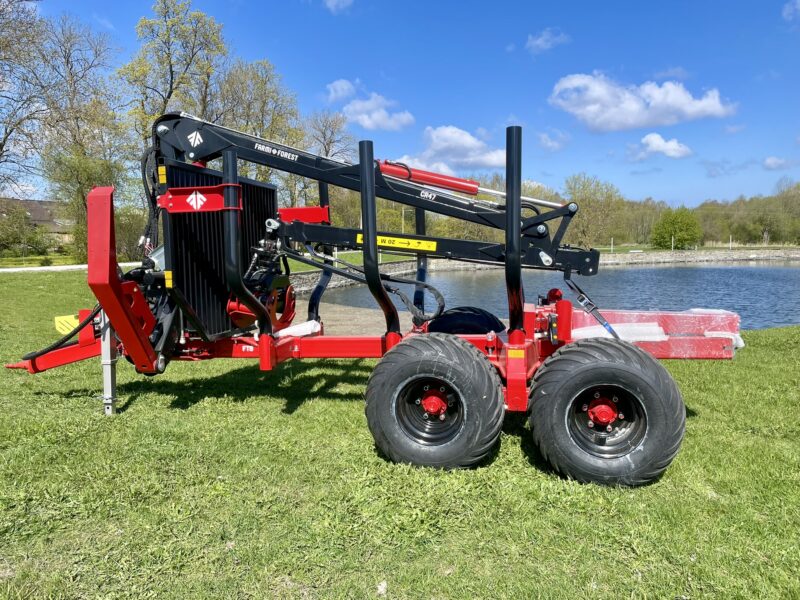

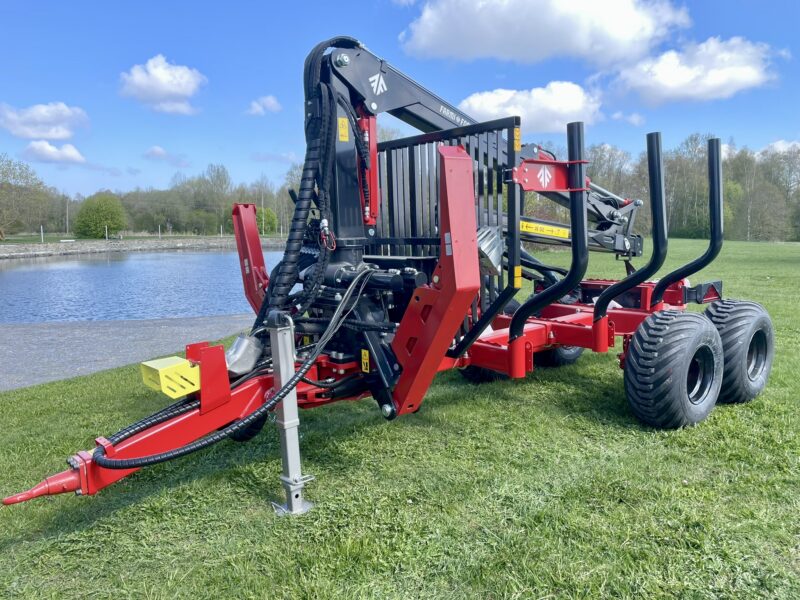

The agile and durable 1-beam trailer has a carrying capacity of 9 tons. The trailer has 6 square posts (3 pairs) as standard, and its width is only 212 cm with 400/60-15.5 rings. Even an empty trolley will not tip over thanks to the strong and correctly dimensioned bar steering. The FT9 timber trailer has movable bulk bunks and a bogie bunk with serrations and load-securing loops. A well-designed and shaped cargo space ensures balanced behavior in all conditions.
